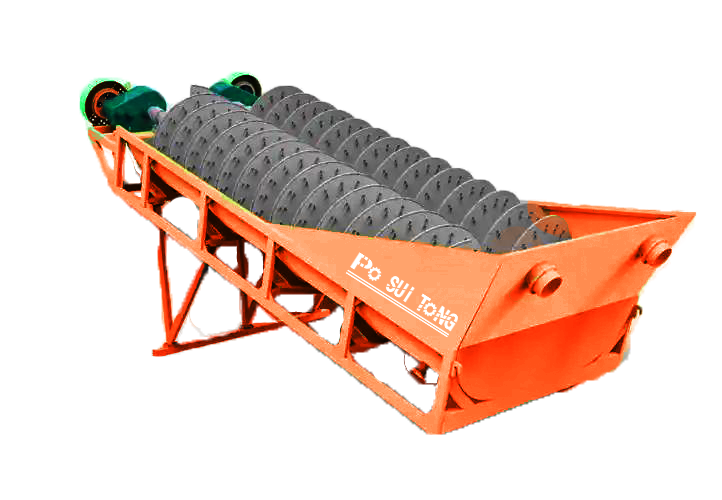

螺旋洗砂机（Spiral Sand Washer）

单螺旋洗砂机双螺旋洗砂机破碎通

2025-07-09 13:37 破碎通供应链科技

功能 Function

• 高效清洗脱泥：螺旋叶片搅动砂石，去除泥土、杂质及过细颗粒（＜0.075mm），提升成品洁净度。

Efficient Washing & De-slime: Spiral agitation removes clay, impurities, and ultrafines (<0.075mm) for cleaner sand.

• 分级筛选：通过溢流堰控制，分离不同粒径砂粒（0-5mm细砂/5-10mm粗砂）。

Grading & Sizing: Weir adjustment separates sand by size (0-5mm fine sand / 5-10mm coarse sand).

• 水资源循环：搭配沉淀池或细砂回收机，实现污水循环利用，节水30%-50%。

Water Recycling: Integrated with settling ponds or fine sand recovery systems to reduce water usage by 30%-50%.

特点 Features

1. 双螺旋结构

◦ 单/双螺旋可选，处理量15-300t/h，洗净度＞95%

Dual-Spiral Design: Single/double spiral options, capacity 15-300t/h, washing efficiency >95%.

2. 耐磨叶片

◦ 螺旋叶片包裹聚氨酯或锰钢，寿命比普通钢板延长2-3倍

Wear-Resistant Blades: PU/manganese steel-clad spirals last 2-3x longer than standard steel.

3. 可调溢流堰

◦ 手动/液压调节堰板高度，精准控制砂粒分级点

Adjustable Weir: Manual/hydraulic weir height control for precise grading.

4. 低故障设计

◦ 轴承密封防水，减速机直联传动，维护成本降低40%

Low-Maintenance: Waterproof bearing seals + direct gearbox drive cut maintenance costs by 40%.

5. 环保节能

◦ 耗水量仅1-3m³/t（传统槽式洗砂机需3-5m³/t）

Eco-Friendly: Water consumption just 1-3m³/t (vs 3-5m³/t for trough washers).

用途 Applications

• 机制砂清洗：去除石粉、泥块，提升建筑用砂级配（符合GB/T 14684标准）

Manufactured Sand Washing: Removes stone powder/clay to meet GB/T 14684 standards.

• 矿山尾砂处理：回收有用矿物（如石英砂、铁矿砂）并减少尾矿排放

Mineral Tailings Processing: Recovers valuable minerals (e.g., quartz, iron sand) and reduces tailings.

• 混凝土骨料预处理：清洗碎石/卵石，降低含泥量（＜1%）

Aggregate Pre-treatment: Washes gravel/pebbles to reduce clay content (<1%).

• 河道清淤：分离淤泥与可利用砂资源

River Dredging: Separates silt from reusable sand.

技术参数（Technical Parameters）

型号 Model	螺旋直径 (mm)	进料粒径(mm)Feed particle size(mm)	处理量 Capacity	功率 Power
PLX1200	1200	≤9	41~85	7.5
PLX1500	1500	≤9	60~130	11
2PLX1200	1200	≤9	75~170	2x7.5
2PLX1500	1500	≤9	150~290	2x15

中英文摘要（Summary）

螺旋洗砂机通过螺旋叶片机械擦洗与水力分级，实现砂石的高效清洁与粒度控制，兼具节水、长寿命和低维护优势，是机制砂生产线和矿山尾矿处理的关键设备。

The Spiral Sand Washer combines mechanical scrubbing and hydraulic grading for efficient cleaning and sizing, featuring water-saving, durability, and low maintenance. It is essential for manufactured sand plants and tailings processing.

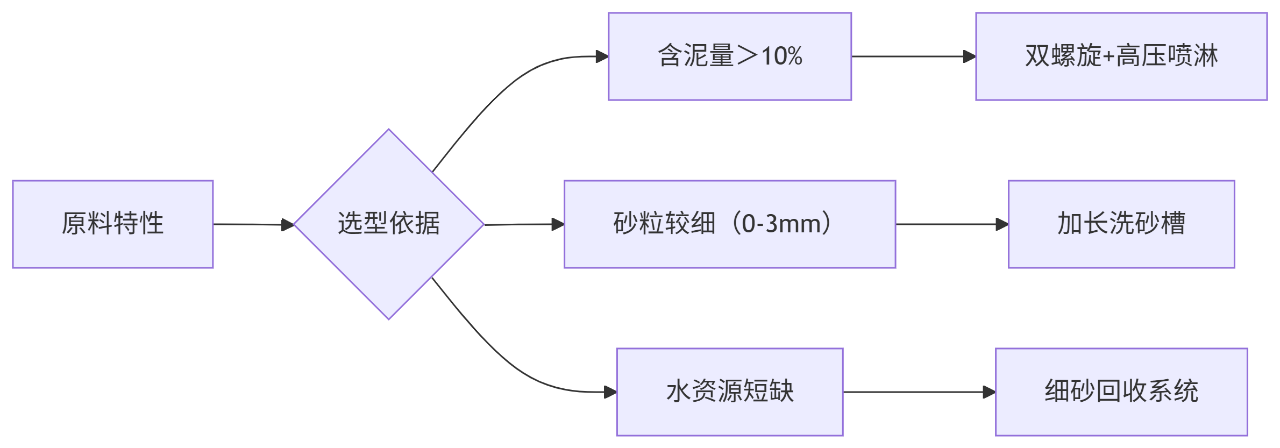

选型建议（Selection Guide）
